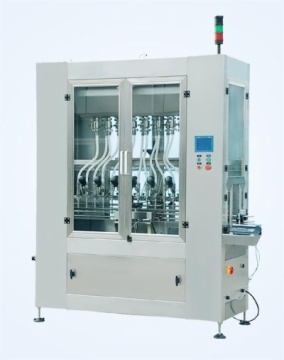

Model CDP-16A /CDP-16AS Micro-computer in-line Filling Machine(With weighing feedback system)

  • Description
Model CDP-16A /CDP-16AS Micro-computer in-line Filling Machine(With weighing feedback system)

Application materials: A better EC and other mobility agent
Equipped with high-precision electronic scales, weighing filling eliminates the need to manually input the data to achieve automatic transmission

Model CDP-16A /CDP-16AS Micro-computer in-line Filling Machine(With weighing feedback system)
· Apply to the bottle diameterΦ33-100 mm
· Measure precision±1%
· Volume40~1000 ml
· Production capacity≤6500 b/h
· Air pressure0.5-0.7 Mpa
· Amount of Air-consuming200 l/min
· Power source~220 V、50 Hz
· Total power1.0 KW
· Weightabout  600 kg
· External dimensions2000×710×2200(L×W×H) mm
