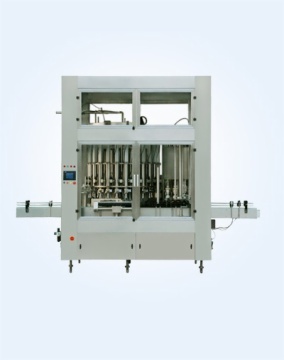

Model GCF-24-6-8 Rotary Filling and Capping machine

  • Description
 Model GCF-24-6-8 Rotary Filling and Capping machine
The machine set of volumetric filling, nitrogen gas rose style capping in one, suitable for mass production


Model GCF-24-6-8 Rotary Filling and Capping machine
· Apply to the bottle diameterΦ40-100 mm
· Height of  Bottle100-280 mm
· Cap specificationΦ25-50 mm
· Measure precision±1%
· Production capacity≤10000 b/h
· Air pressure0.5-0.7 Mpa
· Power source3 Phases ～380 V、50 Hz
· Total power5.5 KW
· WeightAround 5000 Kg
· External dimensions2420×2050×3200(L×W×H)(mm)
